Screw mechanism

Lore & Background

The screw was one of the last of the simple machines to be invented. The earliest known evidence of the screw dates to the Hellenistic period, around the 3rd century BC. Records indicate that the water screw, or screw pump, was first described by the Greek philosopher Archimedes, and there is no reliable historical evidence for its use in Ancient Egypt predating Archimedes. Archimedes wrote the earliest theoretical study of the screw as a machine and is considered to have introduced the screw in Ancient Greece. By the first century BC, the screw was used in the form of the screw press and the Archimedes' screw. While some ancient Greek philosophers studied simple machines, the screw was not typically listed among them, and they did not calculate its ideal mechanical advantage. Heron of Alexandria (c. 10–70 AD) described the screw as an inclined plane wrapped around a cylinder and discussed its fabrication and uses, including a tap for cutting female screw threads. Because their complicated helical shape had to be laboriously cut by hand, screws were only used as linkages in a few machines in the ancient world. Screw fasteners only began to be used in the 15th century in clocks, after screw-cutting lathes were developed.

Reader's Guide

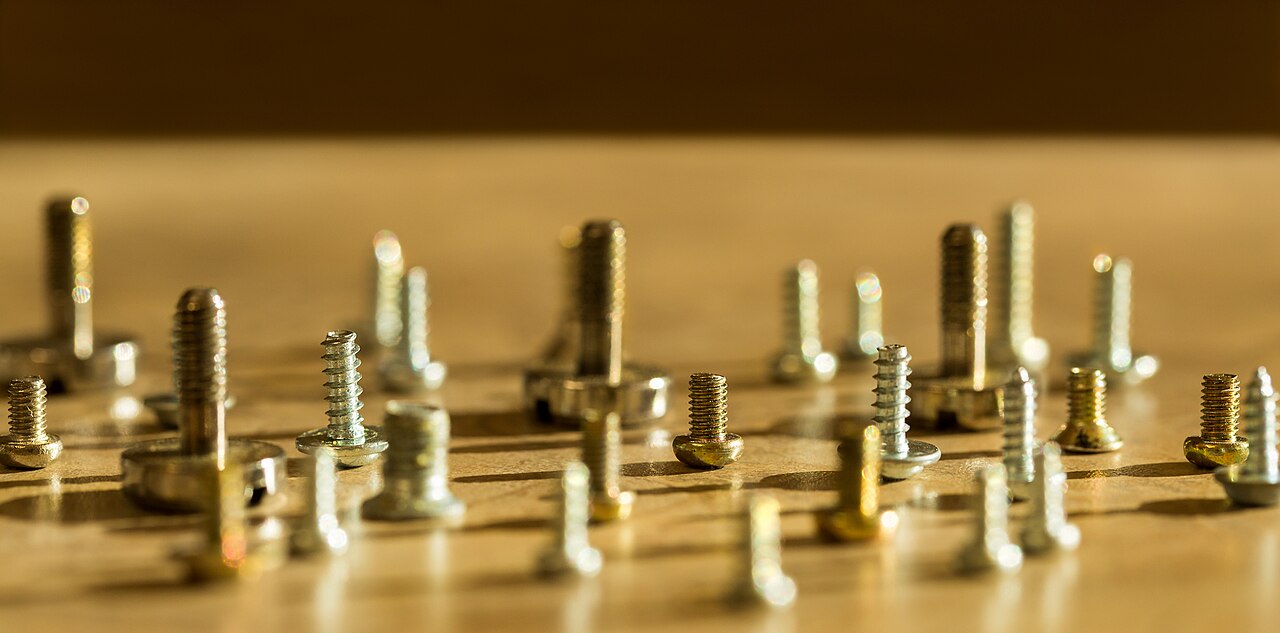

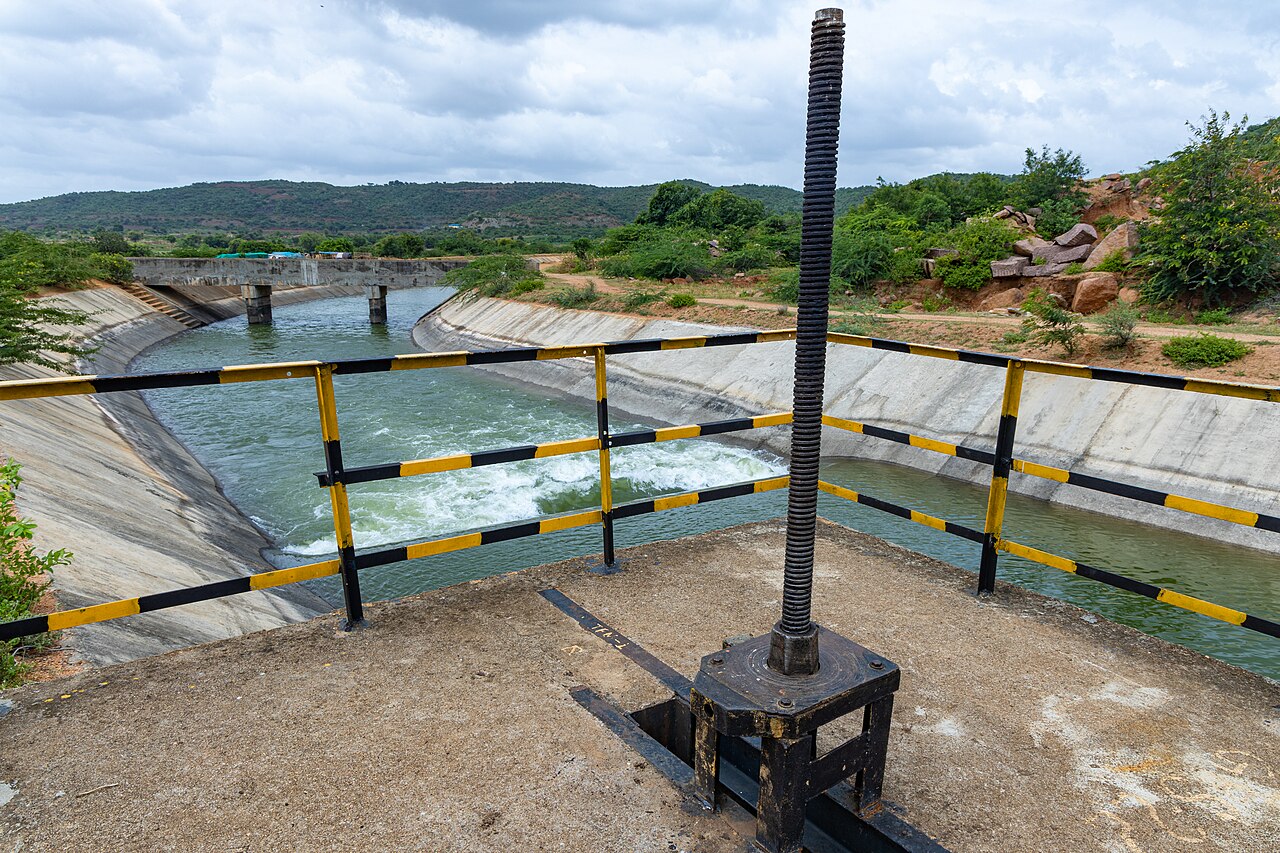

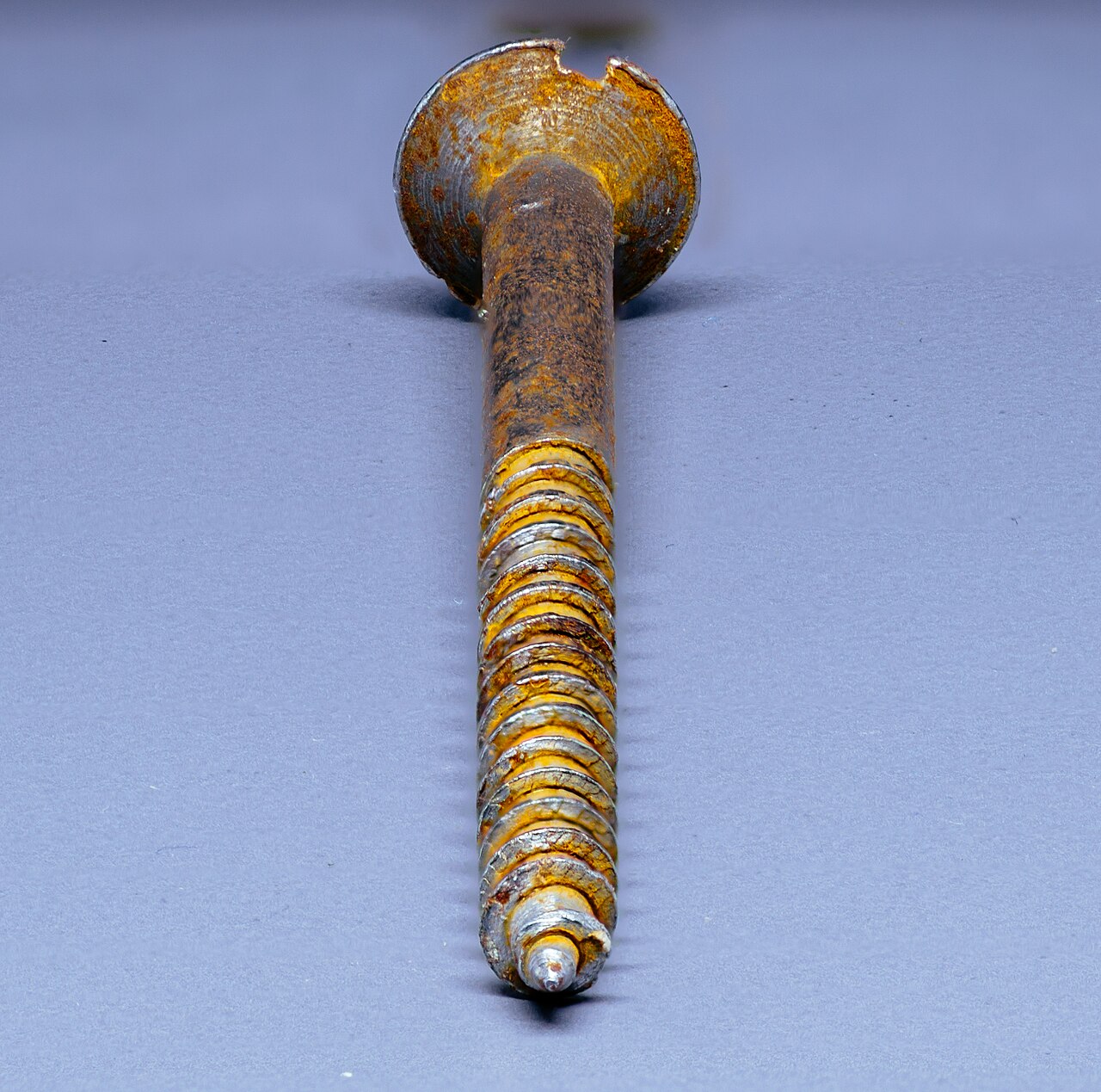

The screw mechanism is significant as one of the six classical simple machines, enabling the amplification of force: a small rotational force (torque) on the shaft can exert a large axial force on a load. The smaller the pitch (distance between threads), the greater the mechanical advantage. Screws are widely used in threaded fasteners to hold objects together, and in devices such as screw tops for containers, vises, screw jacks, and screw presses. Other mechanisms using the same principle include corkscrews and Archimedes' screws. The screw's legacy includes its role in ancient water pumping and pressing, and its later development into standardized threaded fasteners after the invention of screw-cutting lathes in the 15th century. The handedness of screws—most commonly right-handed—became standard partly because for a right-handed person, tightening a right-handed screw uses the stronger supinator muscle. Left-handed threads are used in specific applications such as bicycle pedals, circular saw blades, and gas supply connections to prevent dangerous misconnections.

Did You Know?

• The earliest known evidence of the screw is from the Hellenistic period, around the 3rd century BC.
• Archimedes wrote the earliest theoretical study of the screw as a machine (c. 3rd century BC).
• Heron of Alexandria (c. 10–70 AD) described the screw as an inclined plane wrapped around a cylinder.

Principle and Function

A differential screw is a precision mechanism designed to produce extremely fine adjustments in the spacing between two components. It finds application in instruments where minute positional changes matter—focusing a microscope, closing the gap between a micrometer's anvils, or aligning optical elements. The core idea is deceptively simple: a single spindle carries two screw threads whose leads differ, and sometimes whose handedness is reversed. Two nuts ride on these threads. When the spindle turns, each nut advances or retreats by an amount dictated by its own thread geometry. Because the two threads have different pitches, the net change in the gap between the nuts equals only the difference between the two travel amounts. This means that with ordinary, readily available screws, an operator can achieve adjustments far smaller than either thread alone would permit. The trade-off is mechanical: engaging two nuts against the spindle introduces greater friction than a single-nut arrangement, so the operator must apply more torque to achieve the same rotation.

Historical Origins

The earliest documented application of the differential screw principle appears in the work of Richard Towneley, who refined and completed the micrometer originally designed by Gascoigne. John Flamsteed, in the preface to his Historia Coelestis Britannica, noted that Towneley had made the instrument perform with a single screw what had previously required two on Gascoigne's design. A drawing produced by Robert Hooke in 1667 provides clear visual evidence of Towneley's micrometer, showing a single screw fitted with two threads of differing pitch. In that particular implementation, one thread had half the pitch of the other. This differential arrangement allowed Towneley to keep the micrometer's indicating pointers centered within the field of view as they opened and closed, a practical advantage for astronomical measurement. The fact that Hooke recorded the mechanism in a drawing underscores how significant and novel the design was to contemporaries, cementing the differential screw as a landmark in the history of precision instrumentation.

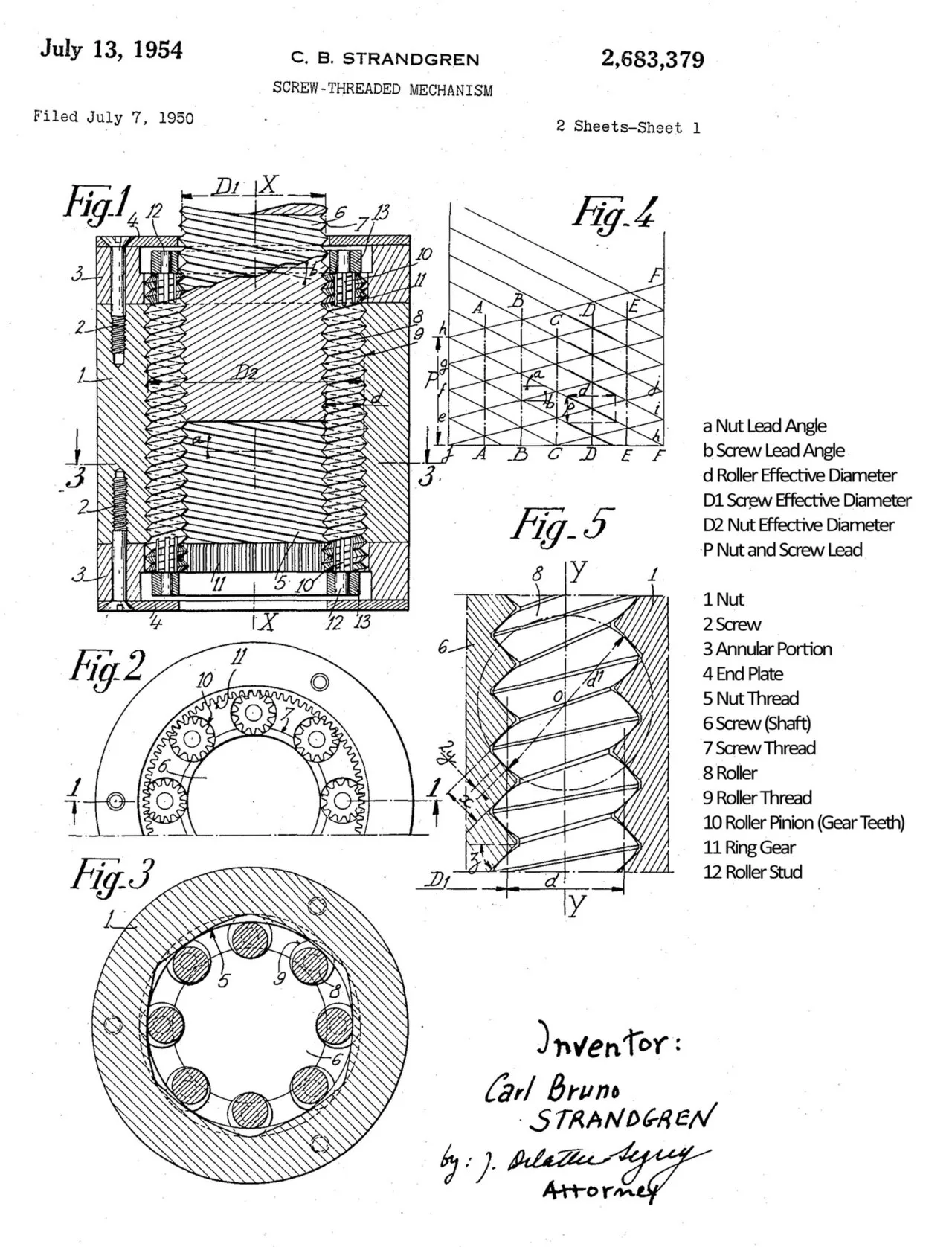

Mechanical Configurations

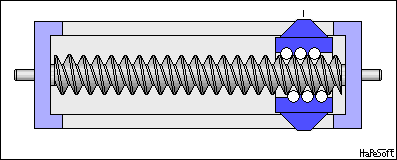

The differential screw is not limited to a single mechanical layout; several distinct configurations exist, each suited to different engineering needs. In one common arrangement, a nut sleeve carries different thread pitches on its inner and outer surfaces. The inner thread engages a screw at the end of an adjusting rod, while the outer thread engages threads inside a main barrel. Rotating the thimble turns the nut sleeve, and the rod and barrel shift relative to one another by the differential between the two pitches. Another design holds two nuts coaxially within a single fixture, with two separate screws of slightly different pitches entering from opposite ends. The heads of these screws are bolted to the two objects whose spacing is being controlled. Each rotation of the nut fixture drives one screw inward by a small amount and the other outward by a slightly larger amount, so the net spacing change equals the difference in their travels. A third possible layout fixes the two nuts directly to the two objects and joins the two screw heads together at the center; turning the combined assembly then adjusts the gap.

Mathematics of Differential Motion

The quantitative behavior of a differential screw follows directly from the geometry of its threads. For single-start threads, one full revolution changes the separation between the two nuts by an effective pitch, denoted Peff. When the two thread specifications are given as threads per inch (TPI1 and TPI2), the relationship is expressed as 1/TPI1 minus 1/TPI2 equals 1/TPIeff, which is numerically equal to Peff. A concrete illustration uses a bolt with 16 tpi coarse threads on one end and 24 tpi fine threads on the other; the calculation yields approximately 0.0208 inches per revolution, equivalent to a 48 tpi thread. For single-start metric threads the arithmetic is simpler: the effective pitch is just the difference between the two nominal pitches. Pairing an M5×0.80 thread with an M4×0.70 thread, for instance, produces a differential motion of 0.1 mm, or 100 micrometers, per turn. An even finer adjustment becomes possible by mixing metric and imperial threads, provided the imperial pitch is first converted to millimeters; a 26 TPI thread (roughly 0.977 mm pitch) paired with a 1.0 mm metric thread yields about 0.023 mm per revolution.
